JOSKIN POLSKA Galvanising Plant: the Event of the Decade


On 15 August 2020, the JOSKIN Group started a major project: the first replacement of the zinc
tank at its galvanizing plant in Poland. A project that turned out to be a very challenging and
impressive one! A new story confirming that JOSKIN does not hesitate to do whatever it takes
to meet its quality standards.
Joskin has for many years come to be associated with and be widely acknowledged for its galvanized machines.
This is no coincidence. Based on the principle that agricultural machinery is used all year round and is mostly
in direct contact with aggressive substances (slurry, manure, etc.) that cause corrosion, JOSKIN was actively
looking for the best coating to guarantee a long-lasting protection for the machines, and the choice naturally fell
on galvanization.

A First-Choice Solution
Hot-dip galvanizing is a very complex process. It happens at a temperature of 450°C. During this process, the
steel is covered with three coatings made of a mix of steel and zinc, as well as with an outer coating of pure zinc.
These three coatings are anchored perfectly to act as the protected surface, unlike the paint that is just shot-blasted directly onto the steel. As for the outer coating, the galvanization is less hard and therefore absorbs the
shocks very well.
This process provides effective protection throughout the life of a machine. This not the only advantage: this coating
requires no or little maintenance, protects perfectly against bad weather and it is not damaged by mechanical
deformation. Galvanization is therefore a first-choice solution allowing to save a lot of time and money.
In 2010, true to its high-quality standards, JOSKIN decided to set up its own galvanizing plant. To do so, the
existing Polish site, located in the town of Trzcianka, was provided with an automatic galvanizing line. Thanks to
this, the company has since then been able to control internally all stages of the process in an optimal way, from
pre-treatment to the actual galvanization, and can carry out this crucial stage in a minimum amount of time.

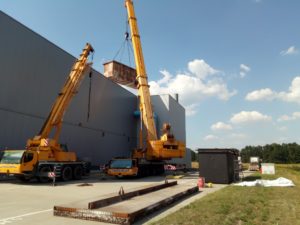

Cranes in action to replace the tank Naming of the tank

A Major Project!
Having reached 10 years of use and after having galvanized more than 100,000 tons of steel, including several
thousands of machines, the time had come to carry out a thorough and rigorous maintenance of the baths to be
able to maintain the acknowledged galvanizing quality standards. JOSKIN therefore decided to get rid of its very
first used tank to make way for a brand new zinc bath.
This project was not that easy as it required meticulous planning and top-quality workmanship to achieve the
desired result. The project was organised and supervised by an engineer from Soumagne. The preparations
included: choosing and transporting the tank, pumping of 700 tons of liquid zinc at 450°C, building a rail track in
the factory to move the fume extraction box, preparing the technicians… and even: dismantling the factory roof! The
crane indeed did not allow to lift the tank out of the furnace to then take it out through the removable wall… What to
do in this case? Dismantle the roof to allow the different cranes to do all the work! Really nothing stops JOSKIN…
Fortunately, during the process, the weather was good in Trzcianka. However, there was a plan B in case of
rainfall, as the insulation of the furnace could not get wet at all!
After 5 days of preparatory work (from 10/08/2020 to 15/08/2020), the new 47-ton empty bath was finally
introduced into the building. After that, the tank has been heated up for 48 hours, the liquid zinc has been
pumped into the new bath and then the bath has been filled up gradually by adding zinc ingots.
After 10 days of work, the tank, named “Antonina” by the galvanizing plant workers as tradition dictates, was
ready to meet all galvanizing requests for the next 10 years

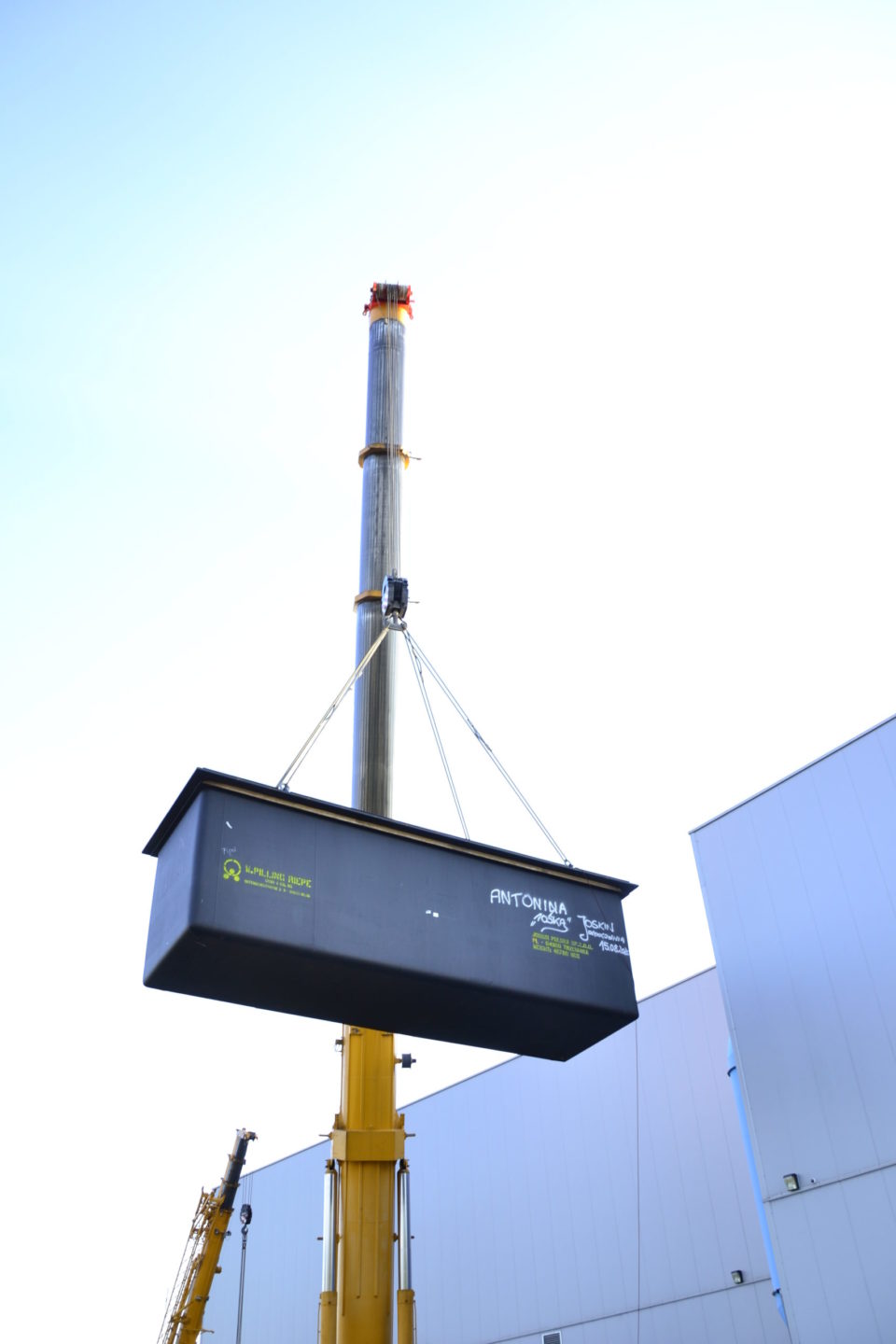

Cranes in action to replace the tank
